30° Angled 19″ 1U Panel for 24 Keystone Modules

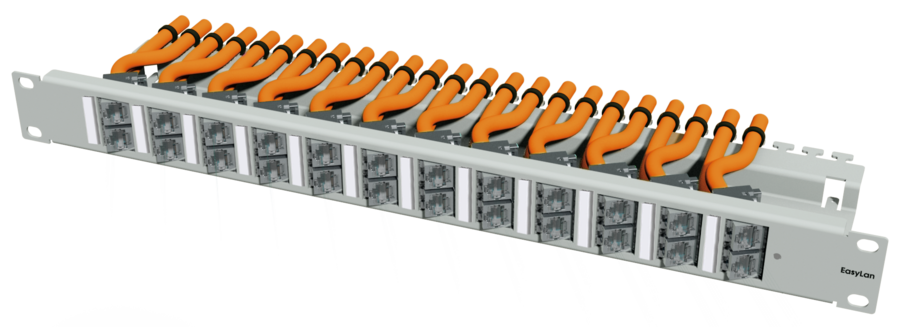

The preLink^®/fixLink^® angled panel accommodates 24 Keystone modules, which snap into the panel at an angle of 30°. This automatically routes the patch cables towards the side of the cabinet, where they can be secured beside the patching area. Additional cable management panels are therefore not required.
As the patch cables are angled, the 30° panel requires less clearance at the front than conventional patch panels with straight-mounted modules.

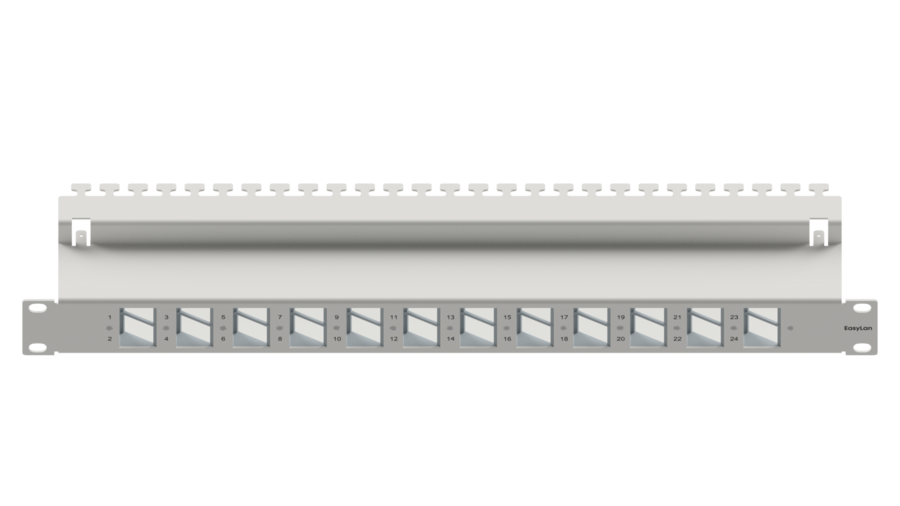

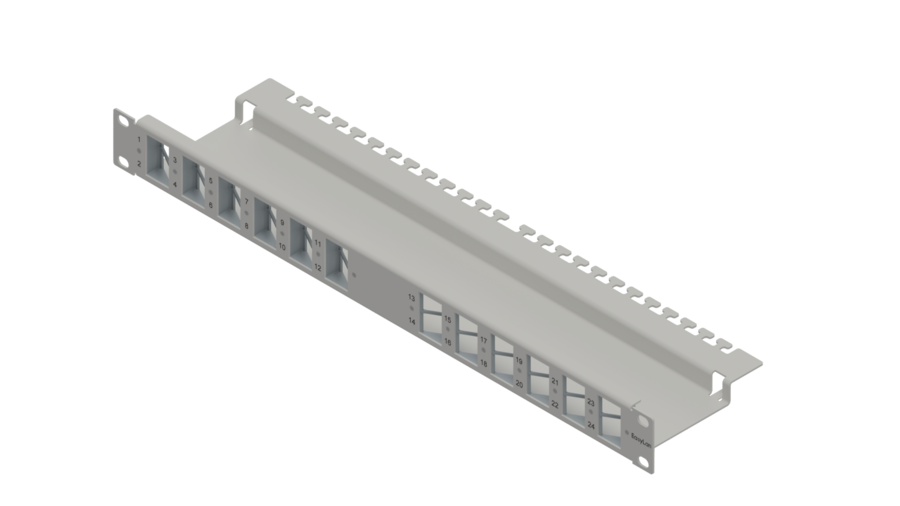

The distribution panel can be fitted with up to 24 preLink^®/fixLink^® RJ45 Keystone modules. It is available in three versions: 24 ports routed to the left, 24 ports routed to the right, or 12 ports routed to the left and 12 ports to the right.
Mounting hardware and Keystone modules are not included in the scope of delivery.

Standards:

• IEC 60 603-7-1

Properties:

• Installation dimensions: 19″, 1U
• Depth: 120 mm
• Suitable for installation in 19″ distribution racks

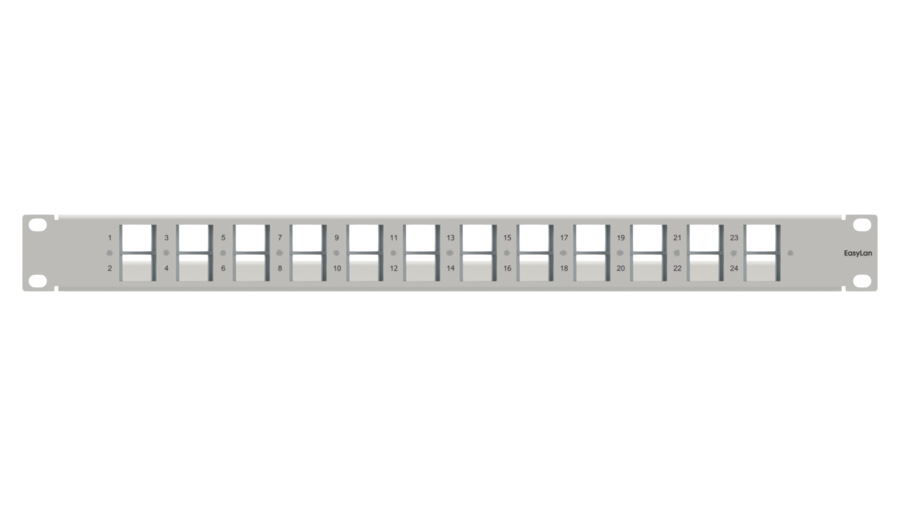

• Front: 24 standard Keystone cut-outs, numbered 1–24
• Rear: Cable support with separate cable-tie fixing for each cable
• Equipotential bonding via earthing cable, including 6.3 × 0.8 mm female blade connector
• Housing material: Powder-coated sheet steel, grey, RAL 7035
• Materials compliant with RoHS 2002/95/EC
• Temperature range: −40 °C to +70 °C

Accessories:

• Self-adhesive labelling strips for identifying two ports each; the strips can be attached between the cut-outs; length: 32 mm
• Screw and cage nut set for one panel
