fixLink® SL Angled RJ45 Keystone Module, Cat. 6A ISO/IEC, Shielded

Videos

Datenschutzhinweis für externes Video

Bitte klicken Sie hier, um das von extern eingebundene Video anzuzeigen. Dabei werden personenbezogene Daten wie Ihre IP-Adresse an den externen Server übertragen.

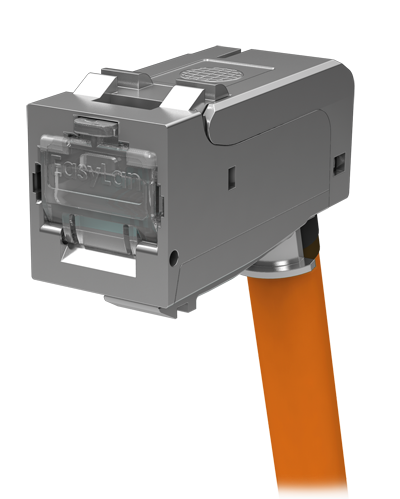

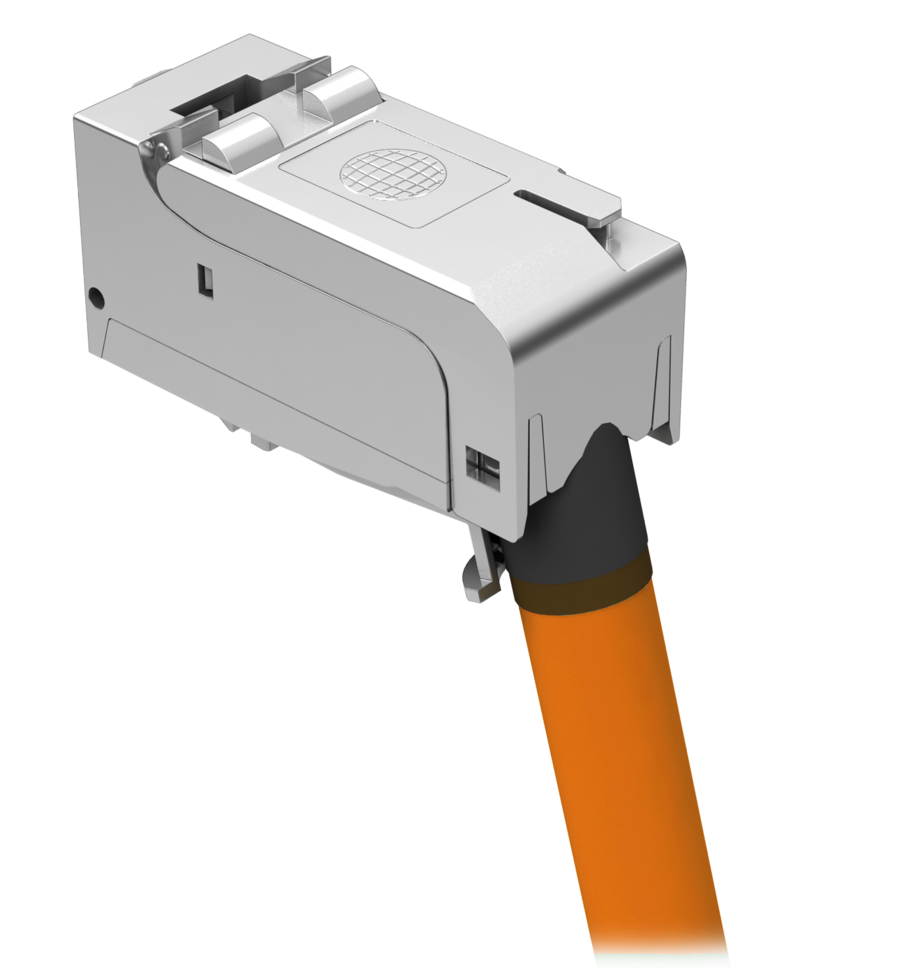

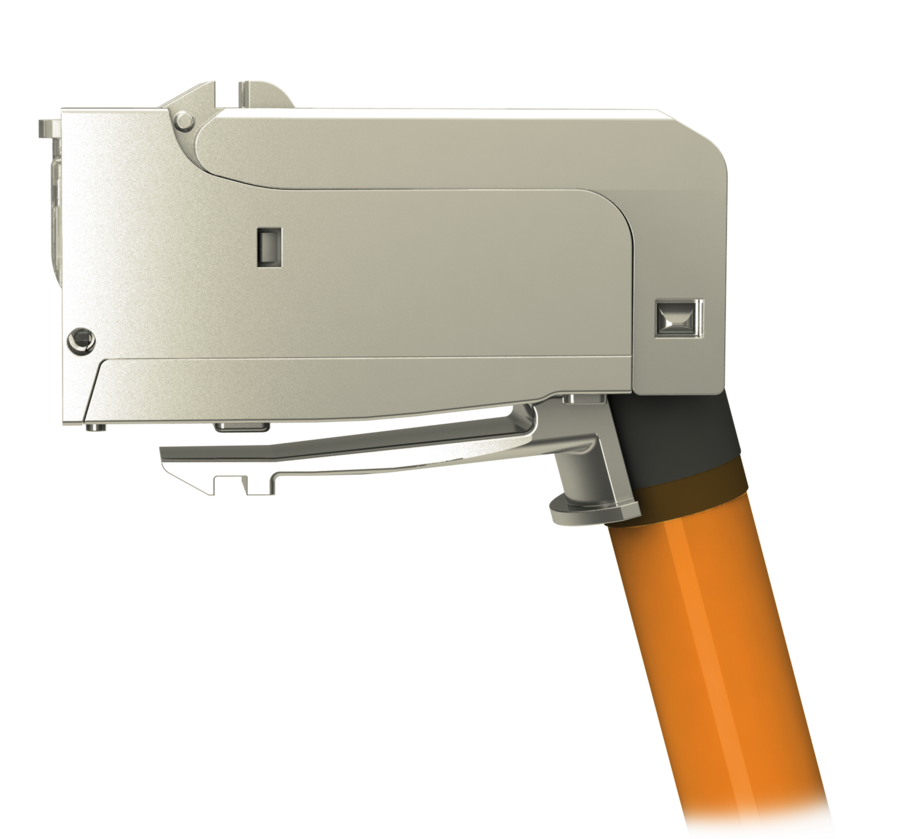

The angled fixLink^® SL RJ45 Keystone module provides users with a high-quality RJ45 socket module for the transmission of 10 Gigabit Ethernet. With its 75° cable outlet and minimum installation depth of just 27 mm, the module is particularly suitable for applications where space is limited, such as flush-mounted and surface-mounted outlets. The module can be terminated in less than one minute using only diagonal cutters. The freely accessible contact zone ensures consistently high termination quality and reliable transmission performance. The special contact geometry combined with 30 µin gold plating ensures reliable 4PPoE performance in accordance with IEEE 802.3bt under all operating conditions. The housing is made of nickel-plated die-cast zinc and meets the highest environmental and mechanical requirements. In combination with a design-compatible module holder, the module can be integrated into all common switch ranges. Certifications issued by independent test laboratories confirm the high quality standards of the angled fixLink^® SL Keystone module. It is supplied in environmentally friendly cardboard packaging. The module is available in an AWG 24–22 version for installation cables and an AWG 27–26 version for flexible cables and patch cables.
Connector standard: IEC 60603-7-51.

Mechanical Properties:

Mating cycles: ≥ 750
Housing material: Nickel-plated die-cast zinc
Integrated dust-protection shutter: Transparent plastic, replaceable with other colours
Gold plating in the contact area: 30 µin
Suitable cable diameter: 5–9 mm
Tool-free termination according to T568A or T568B

Environmental Requirements:

Protection rating: IP20
Temperature range: −40 °C to +70 °C

Electrical Properties:

Contact resistance: ≤ 20 mΩ
Insulation resistance between contacts: ≥ 500 MΩ
Dielectric strength, contact to contact: 1,000 V DC/AC peak
Dielectric strength, contact to shield: 1,500 V DC/AC peak
Current-carrying capacity at 50 °C: 1.25 A
Suitable for 4PPoE in accordance with IEEE 802.3bt

Transmission Properties:

Ideally suited for the transmission of 10 Gigabit Ethernet (10GBASE-T) in accordance with IEEE 802.3an and for applications up to 500 MHz in accordance with Cat. 6A and Class EA to ISO/IEC 11801 AMD1/2 and DIN EN 50173-1, with link lengths of more than 2 m.
Certified by GHMT to Cat. 6A ISO/IEC component performance requirements (PvP) and for Power over Ethernet 4PoE.

Description

Order Code

PU 24

Order Code

Single Packaging

fixLink^® SL Angled RJ45 Keystone Module, Shielded, Cat. 6A ISO/IEC, AWG 24–22

CKWAK007

CKWAK007EP

fixLink^® SL Angled RJ45 Keystone Module, Shielded, Cat. 6A ISO/IEC, AWG 27–26

CKWAKFL7

CKWAKFL7EP

GHMT PVP Kat.6A Zertifikat Download GHMT PVP Kat.6A Zertifikat
