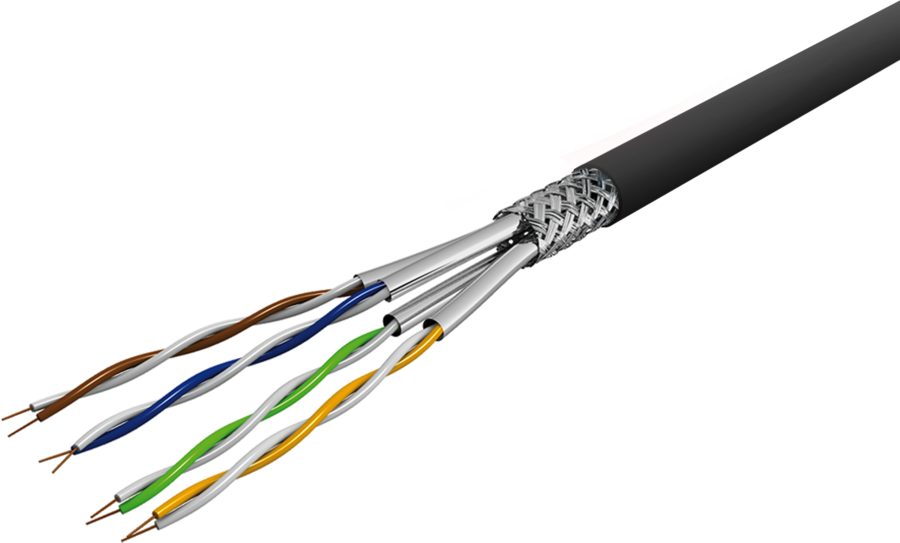

Data Cable EasyLan® Bronze Outdoor S/FTP AWG23/1 1000 MHz Cat. 7

Data cable for the transmission of analogue and digital signals in outdoor cabling applications. The cable is UV-resistant and suitable for applications up to Class F and for 10GBASE-T transmission over distances of up to 100 m in the channel.

CPR fire class:

• Fca

Transmission Properties:

• 10 GBase-T up to 100m

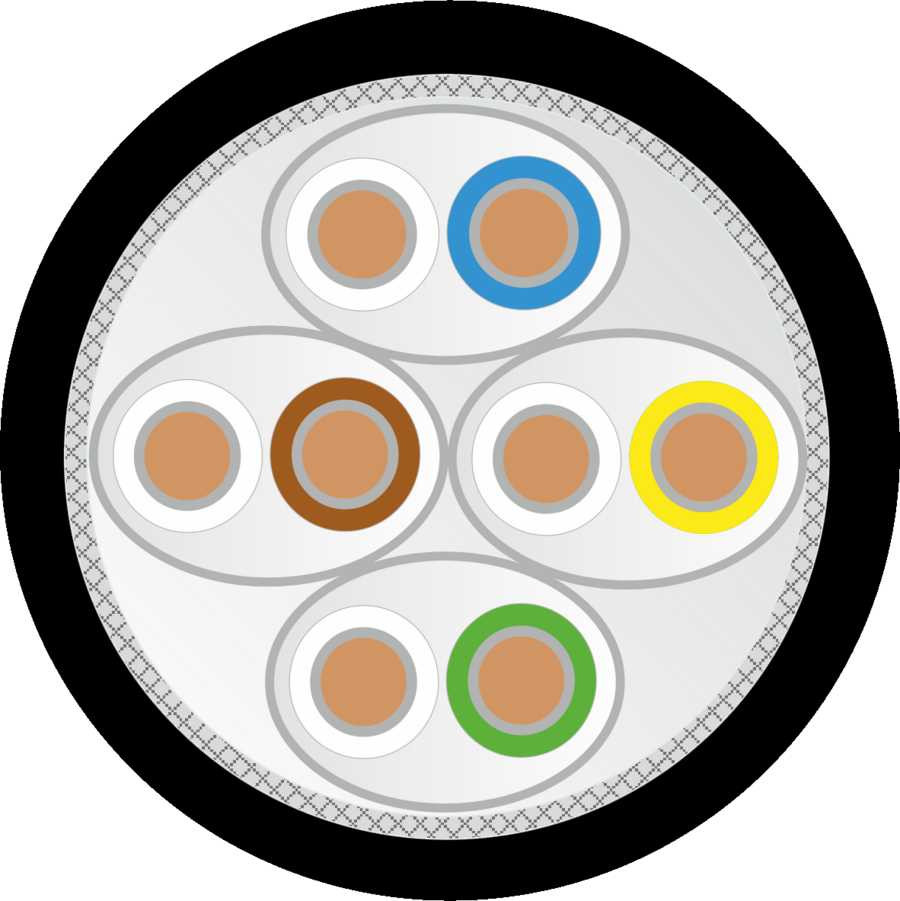

Cable structure:

• Conductor: AWG 23/1, bare copper
• Insulation: Foamed SFS-PE
• Outer jacket: PE, black, RAL 9005
• Outer diameter: 9.5 ± 0.2 mm
• Conductor colour code: IEC 708-1
• Individual pair shielding, PiMF: Aluminium laminated foil
• Overall shield: Copper braid comprising multiple 0.10 mm tinned wires

Mechanical Properties:

• Operating temperature range: −20 °C to +60 °C
• Installation temperature range: 0 °C to +50 °C
• Minimum bend radius after installation: 4 × outer diameter
• Minimum bend radius during installation: 8 × outer diameter

Areas of application:

• IEEE 802.3: Ethernet 10Base-T; Fast Ethernet 100Base-T; Gigabit Ethernet 1000Base-T; 10GBase-T
• IEEE 802.5: ISDN; FDDI; ATM Cable sharing; Multimedia CATV
• IEEE 802.3at: PoE / PoE+ suitable
• IEEE 802.3bt: 4PPoE

Standards:

• EN 50174-2
• ISO/IEC 11801; IEC 61156-5

Chemical Properties:

• RoHS 2011/65/EU

Electrical Properties:

• Maximum loop resistance: 154 Ω/100 m
• Minimum insulation resistance: 5 GΩ × km
• Test voltage: 750 V AC
• Nominal velocity of propagation, NVP: Approx. 77%
• Maximum propagation delay: 425 ns/100 m
• Delay skew: < 15 ns/100 m

Printing text:

EasyLan® Bronze – S/FTP – AWG 23/1 – Kat. 7 – 1000 MHz – www.easylan.de >> [SMM] m [Batch Number] <<
