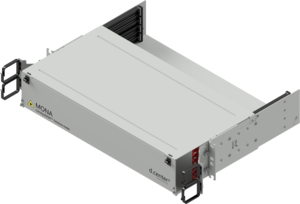

MONA® Housing 2U
The MONA® 2U Housing is an enclosure for pre-terminated fibre-optic cabling solutions. In data-centre environments, it is suitable for trunk cables, breakout cables and splicing solutions. The housing enables straightforward migration between multifibre and two-fibre systems while providing maximum packing density. It can accommodate up to six different pull-out trays, or module carriers, each with a height of 1/3U, suitable for Corning EDGE™ and Corning EDGE8® plug-in modules.
The system can be installed by a single person without specialist tools.
Features:
- Integrated cable management
- Removable side-mounted patch-cord management
- Two-stage depth adjustment using mounting brackets
- Enclosure colour: light grey, RAL 7035
- Dimensions: W 390 × D 540 × H 90 mm
- Materials compliant with RoHS Directive 2011/65/EU
Capacity When Fully Equipped with Six 1/3U Trays:
- Maximum total capacity: 144 × MTP® or 288 × LC
- 288 fibres using LC ports, equivalent to 144 LC duplex ports
- 1,152 fibres using 8-fibre MPO/MTP® ports
- 1,728 fibres using 12-fibre MPO/MTP® ports
| Description | Order Code |
| MONA® 19" Housing 2U Corning EDGE™ Solutions Inside | LMC2HE1E |
