MONA® Fixation System
The MONA® Fixation System can be attached at various positions on the rear cable supports.

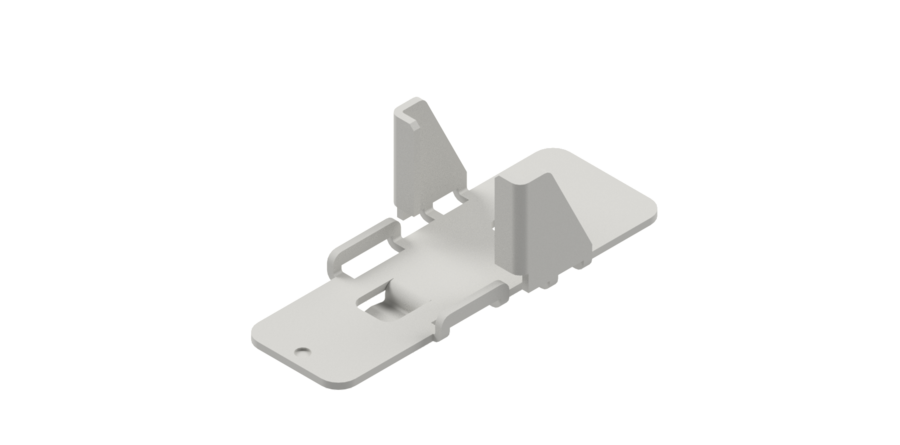

Fixation System for One Pre-Terminated Fibre-Optic Cable with 4–48 Fibres
The MONA® Fixation System for one pre-terminated fibre-optic cable with 4–48 fibres is designed to secure a pre-terminated fibre-optic cable with a breakout head and square mounting interface. It provides simple strain relief and torsion-resistant installation.
Features:
- Dimensions: W 31 × L 76 × H 25 mm
- Materials compliant with RoHS Directive 2011/65/EU

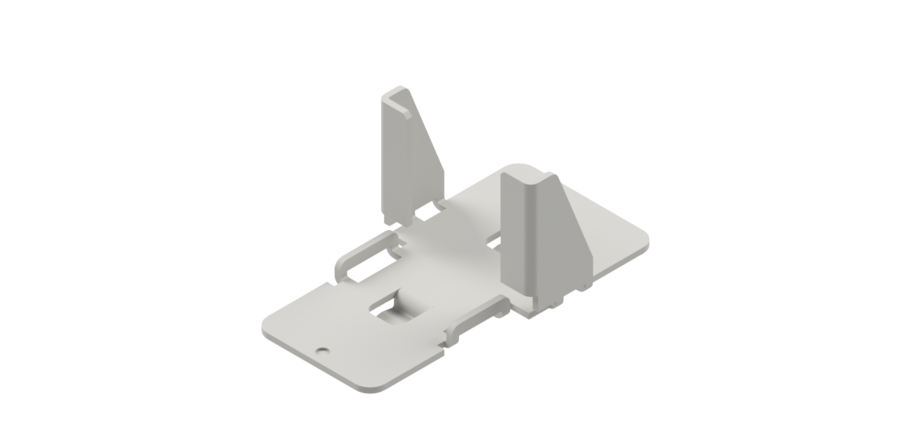

Fixation System for One Pre-Terminated Fibre-Optic Cable with Breakout Head and 72–144 Fibres
The MONA® Fixation System for one pre-terminated fibre-optic cable with a breakout head and 72–144 fibres is designed to secure a pre-terminated fibre-optic cable with a breakout head and square mounting interface. It provides simple strain relief and torsion-resistant installation.
Features:
- Dimensions: W 38 × L 76 × H 33 mm
- Materials compliant with RoHS Directive 2011/65/EU

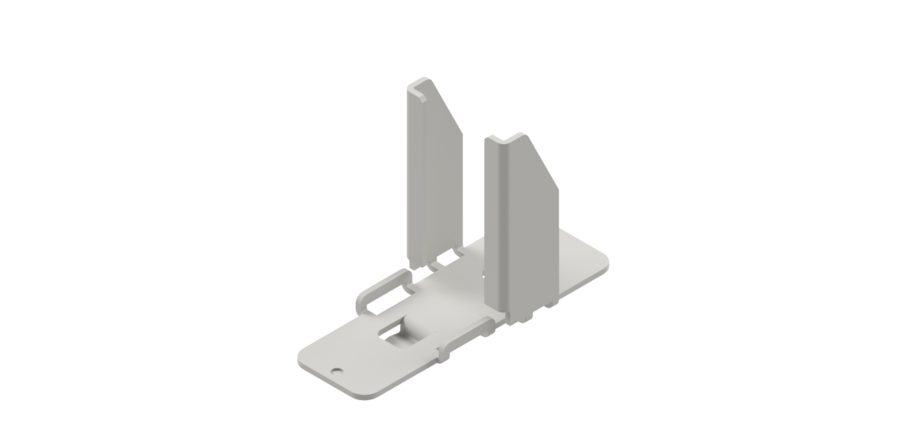

Fixation System for Two Pre-Terminated Fibre-Optic Cables with Breakout Heads and 4–48 Fibres
The MONA® Fixation System for two pre-terminated fibre-optic cables with breakout heads and 4–48 fibres can only be attached to the rear cable support of a 2U or 4U housing. It is designed to secure two pre-terminated fibre-optic cables with breakout heads and square mounting interfaces, providing simple strain relief and torsion-resistant installation.
Features:
- Dimensions: W 31 × L 76 × H 52 mm
- Materials compliant with RoHS Directive 2011/65/EU

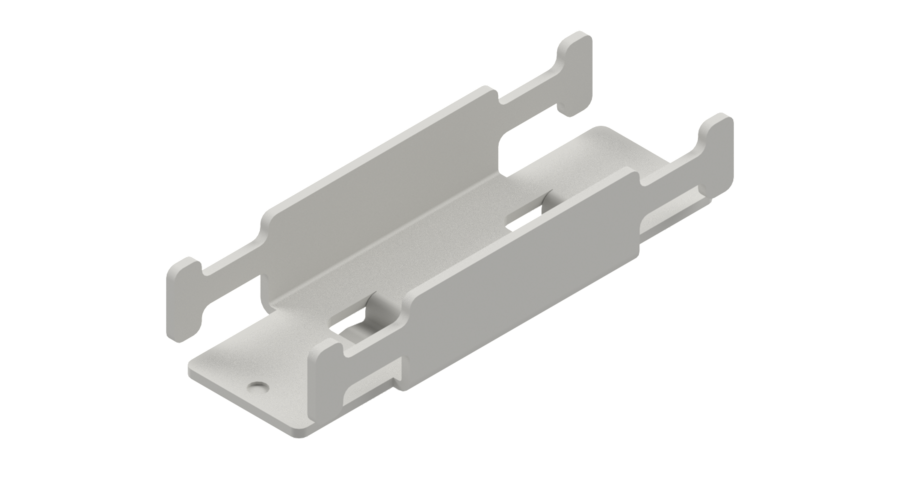

Fixation System for Breakout Cables up to 23 mm
The MONA® Fixation System for breakout cables is designed to secure breakout cables with a diameter of up to 23 mm.
Features:
- Dimensions: W 27 × L 76 × H 16 mm
- Materials compliant with RoHS Directive 2011/65/EU
| Description | Order Code |
| MONA® Fixation System for one pre-terminated fibre-optic cable, 4–48 fibres | ELWS1AB |
| MONA® Fixation System for one pre-terminated fibre-optic cable with breakout head, 72–144 fibres | ELWS1CD |
| MONA® Fixation System for two pre-terminated fibre-optic cables with breakout heads, 4–48 fibres | ELWS2AB |
| MONA® Fixation System for breakout cables | ELWS1BR |
Datenblatt MONA® Fixation System Download Datenblatt MONA® Fixation System
