MONA® Variable Back-End, 1U / 2U / 4U
A variable cable strain-relief system for attachment to MONA® 1U, 2U or 4U housings. Cables can be routed flexibly either to the side or straight to the rear through dust-protection brushes. The Back-End and trunk cable can be installed by a single person without specialist tools. Removable enclosure components provide easy access to the connectivity components. Cable harnesses can also be secured, for example for storing excess cable length. Unused outlets can be closed with blanking covers. The MONA® Back-End is available for 1U, 2U and 4U housings.
Features:
- Includes knurled screws for attachment to the housing
- Enclosure colour: light grey, RAL 7035
- Materials compliant with RoHS Directive 2011/65/EU
Dimensions:

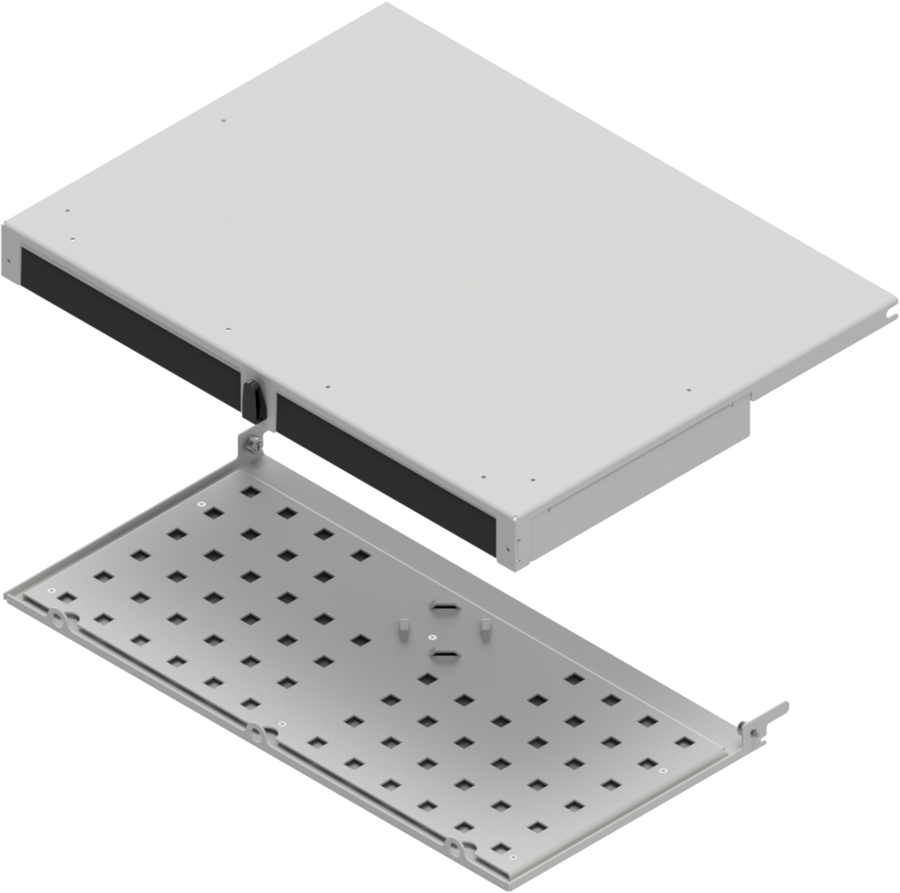

- 1U W 445.8 × D 348 × H 44 mm

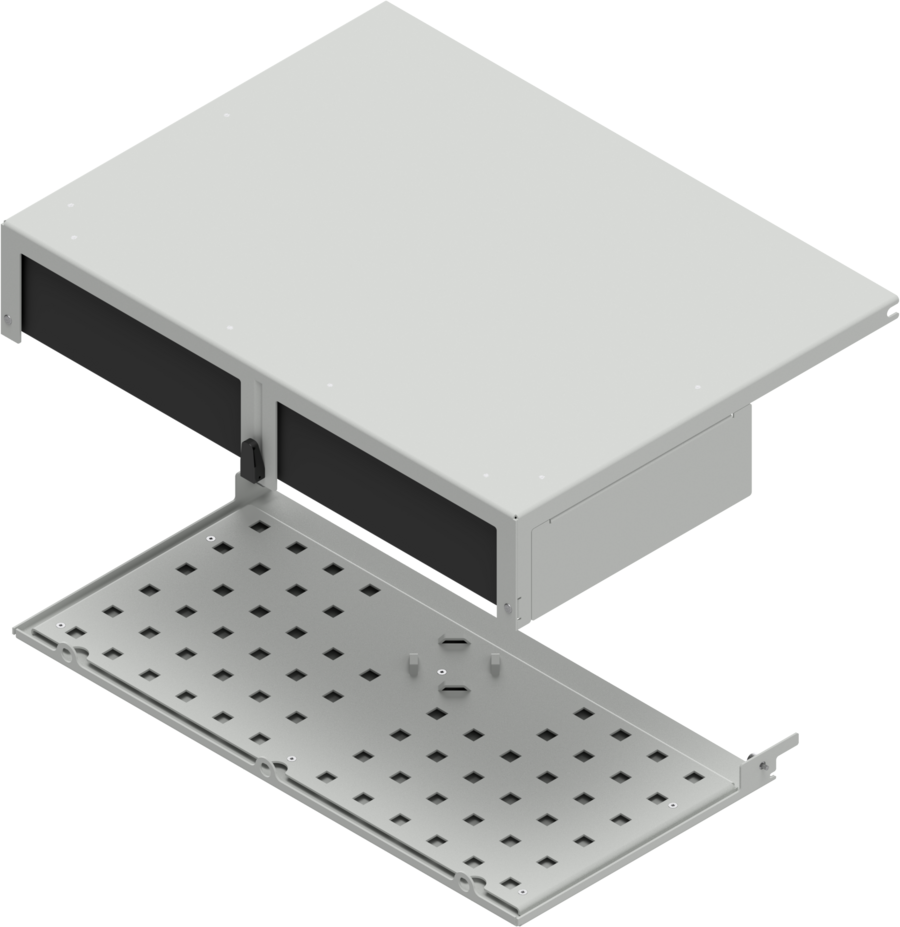

- 2U W 445.8 × D 348 × H 88 mm

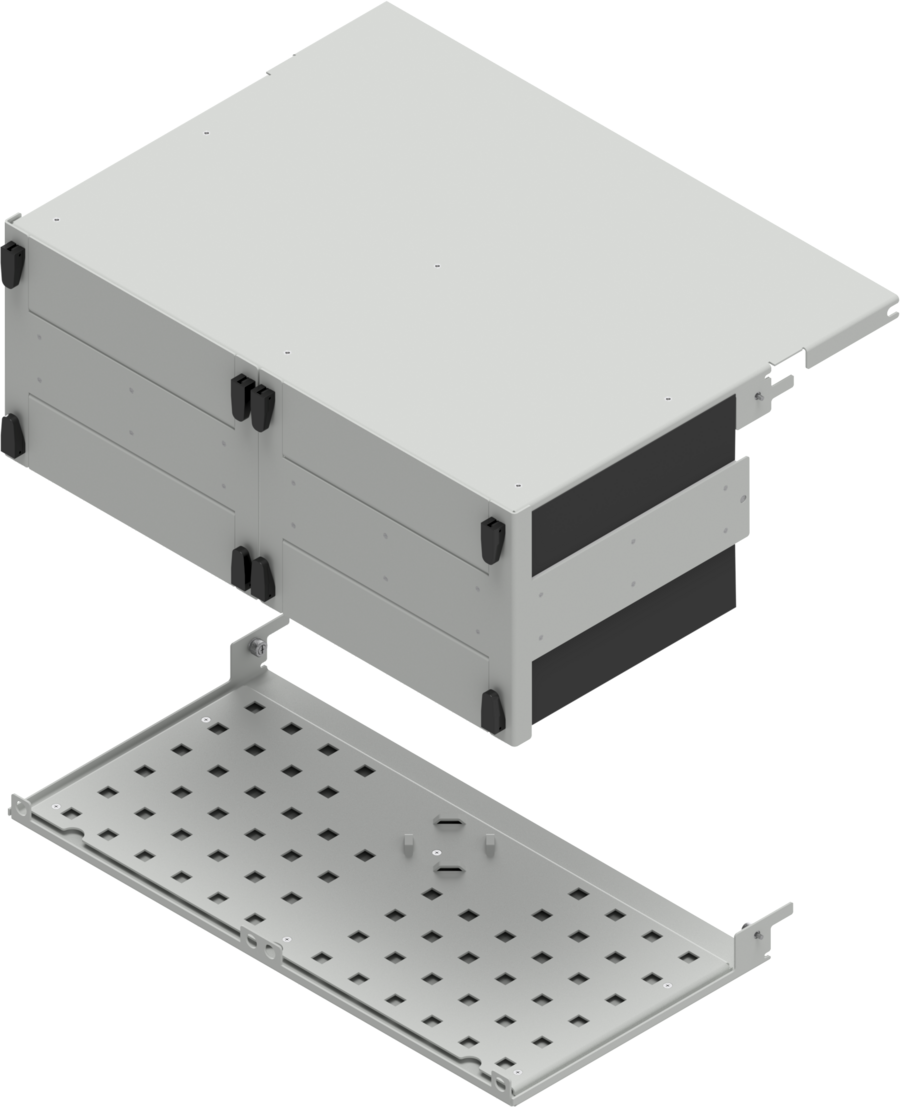

- 4U W 445.8 × D 348 × H 177 mm
| Description | Order Code |
| MONA® 19-inch Back-End, 1U | LMCKAV1HE1E |
| MONA® 19-inch Back-End, 2U | LMCKAV2HE1E |
| MONA® 19-inch Back-End, 4U | LMCKAV4HE1E |
