H.D.S. Fibre-Optic Trunk Cable
Videos

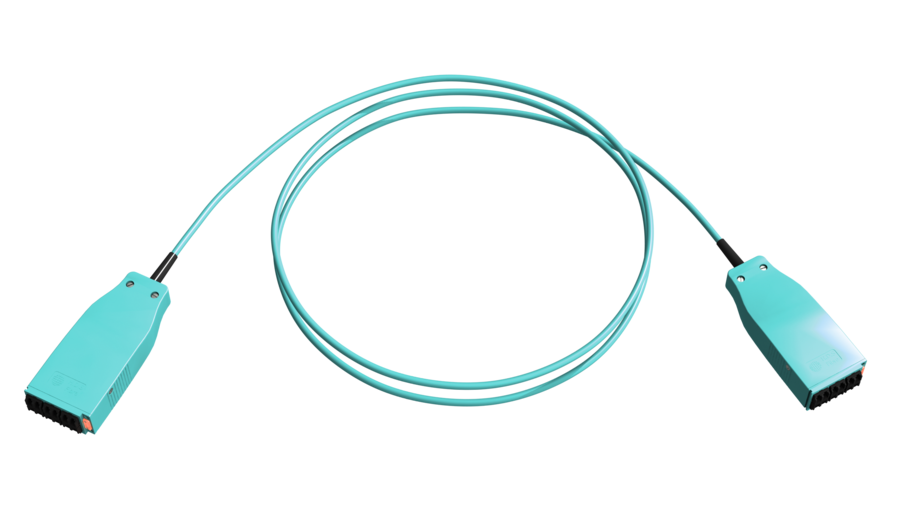

H.D.S. fibre-optic trunk cables are designed for cabinet-to-cabinet connections and for connecting consolidation points. The pre-terminated solution is supplied with test reports and incorporates six LC duplex connections within the trunk cable. It is designed for 10 Gigabit Ethernet transmission in accordance with IEEE 802.3. H.D.S. fibre-optic trunk cables are available in custom link lengths with singlemode OS2 or multimode OM3 and OM4 fibres. The maximum packing density is 168 LC duplex ports within 3U or 48 LC duplex ports within 1U. The integrated LED signalling function enables the corresponding remote end of the cable link to be identified reliably during operation.
Standards:
- IEEE 802.3; IEC 888; 10GBase-SR/SW; DIS14165-111
Cable Features:
- Designation: I-DA2(ZN)H 2 × 6 XX + 2 × AWG26
- Fibre categories: OS2, OM3 and OM4
- Sheath: FR-LSOH
- Sheath colours: OS2: yellow; OM3: aqua; OM4: heather violet
- Fire test: IEC 60332-3
- Bend radius: During installation 100 mm; After installation: 50 mm
- Maximum pulling force: < 320 N
Module Features:
- Material: plastic
- Colours: OM4 heather violet, OM3 aqua, OS2/APC green, OS2/PC blue

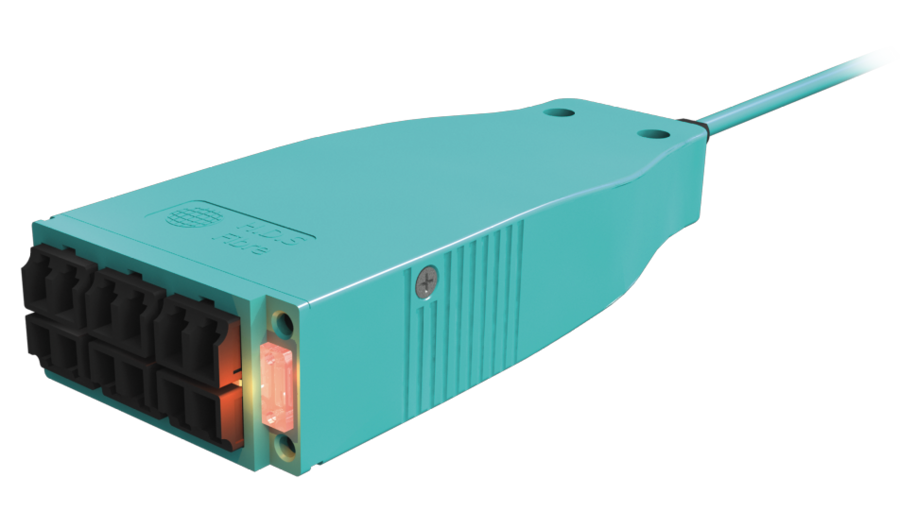

- Adapters: 6 × LC duplex modules
| Description | Order Code Single Packaging |
| H.D.S. fibre-optic trunk cable, 6 × LC duplex, multimode OM4, heather violet, with LED identification function | LH642200000 |
| H.D.S. fibre-optic trunk cable, 6 × LC duplex, multimode OM3, aqua, with LED identification function | LH632200000 |
| H.D.S. fibre-optic trunk cable, 6 × LC duplex, singlemode OS2, blue, with LED identification function | LH602200000 |
| H.D.S. fibre-optic trunk cable, 6 × LC duplex APC, OS2, green, with LED identification function | LH692290000 |
