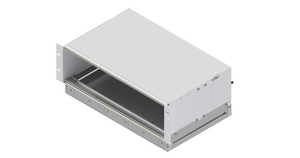

19-Inch 4U Subrack with Pull-Out Excess-Length Storage Drawer
Module carrier with an excess-length storage drawer for use with FODH plug-in modules in splice and trunk configurations. Cable reserves can be stored neatly in the excess-length compartment underneath. A patch-cord management panel with cable guides is fitted to the front of this compartment. The plug-in modules can be pulled out completely. They are mounted on threaded rails, enabling quick and straightforward installation. Cables enter through the openings at the rear of the excess-length compartment. Each plug-in module is secured to the subrack by two screws through the module’s front panel.
The subrack can accommodate a maximum of twelve 7HP plug-in modules. The excess-length storage drawer is fully extendable.
Features:
- Material: powder-coated aluminium, grey, RAL 7035
- Dimensions: 19-inch, 4U
- Installation depth: 283.5 mm
- Capacity: up to 144 ports distributed across 12 individual modules
- Applications: installations with limited cabinet space, high flexibility and individual expansion requirements, for example in data centres
- Equipotential bonding: grounding lug with grounding conductor, including 6.3 × 0.8 mm female spade terminal
- Materials compliant with RoHS Directive 2002/95/EC
- Operating temperature range: −20 °C to +70 °C
| Description | Order Code |
| 19-inch 4U subrack with pull-out excess-length storage drawer | AVM10005 |
| Aluminium blind panel | AVMB00001E |
| Screws and cage nuts, set for one panel, 4 pieces per polybag | AVZ4SUKM |
