preLink® SL RJ45 Keystone Module, angled Cat. 6A ISO/IEC, shielded

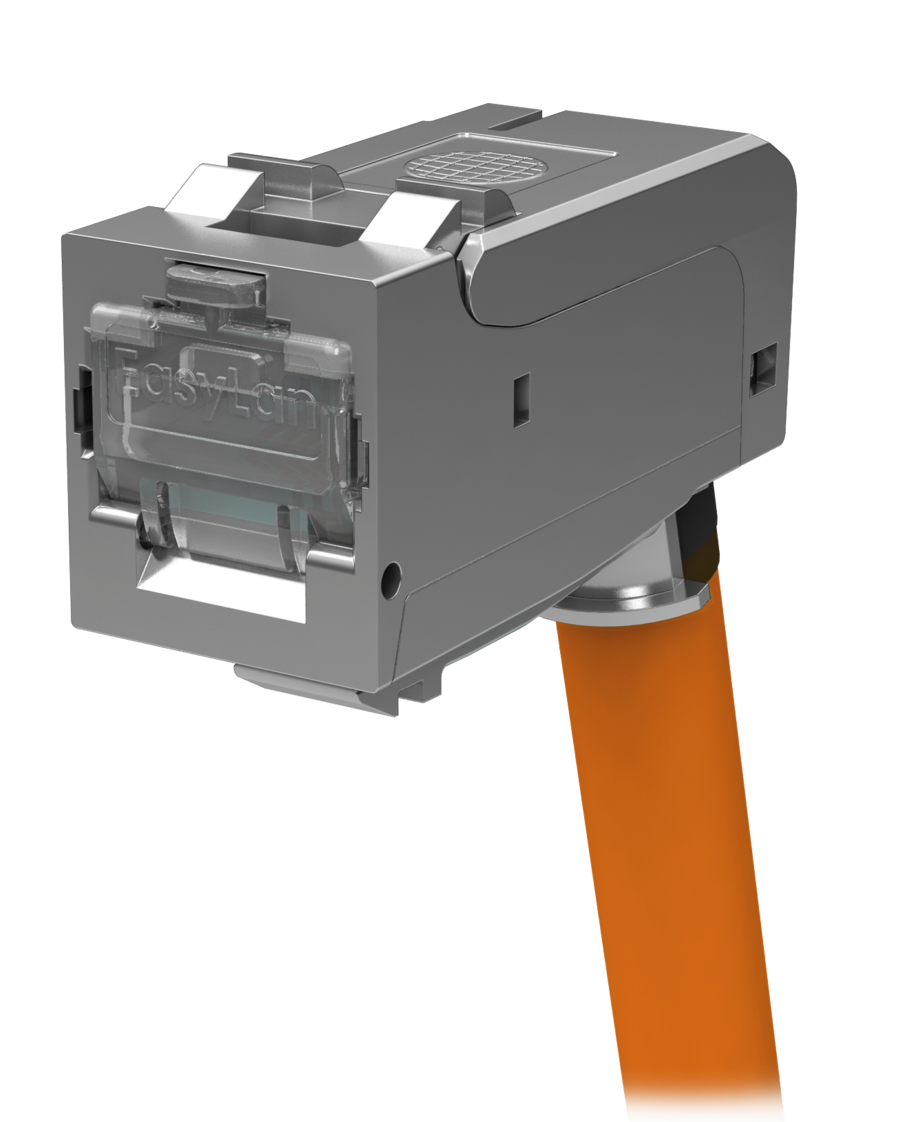

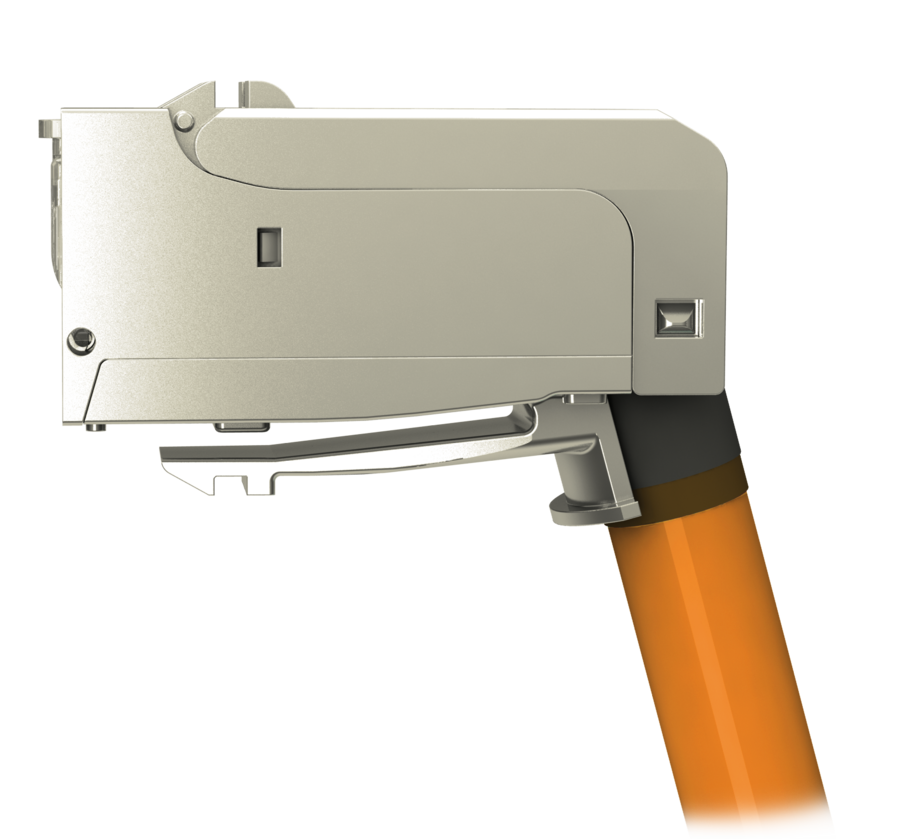

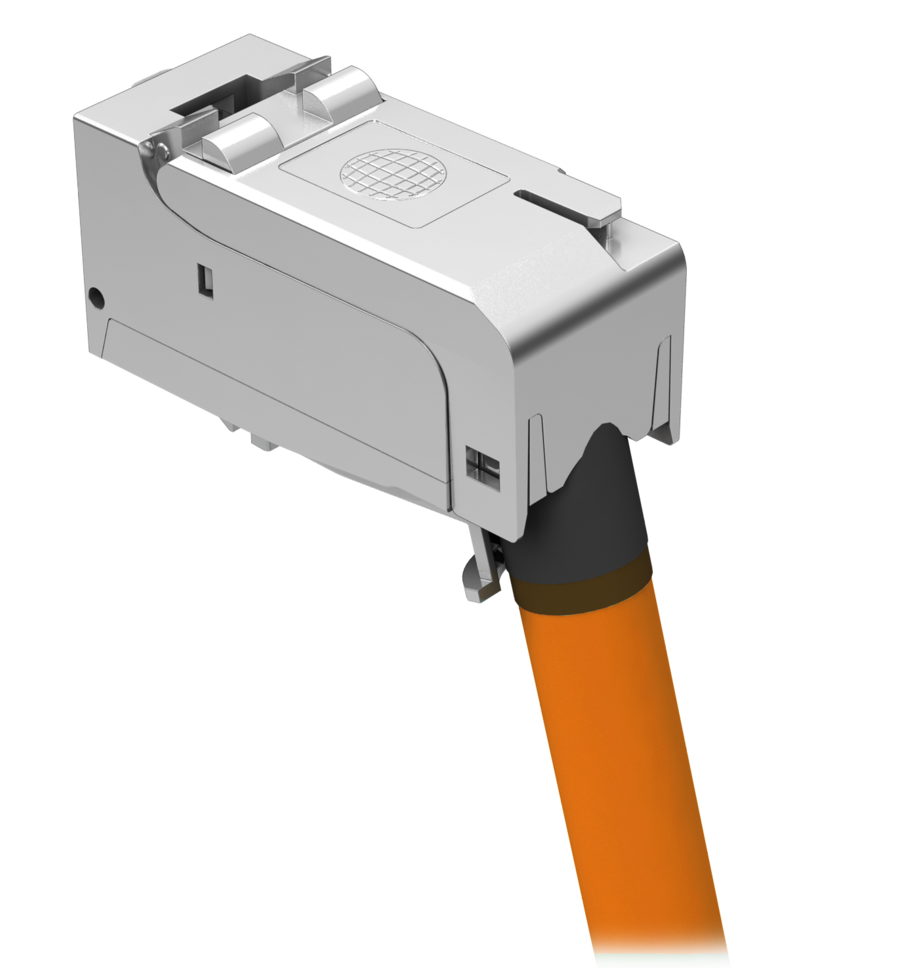

The preLink^® SL 75° RJ45 keystone module with 75° cable outlet has been specially developed for applications with limited space. Its 75° cable outlet makes it particularly suitable for use in data sockets and cavity cabling. A minimum installation depth of 27 mm allows for an almost unlimited range of applications. With the preLink^® SL RJ45 75° Keystone module, users get an RJ45 socket module of the highest quality and flexibility. The preLink^® cable termination block belonging to the module is precisely assembled using the preLink^® assembly pliers, which enables high-quality and consistent assembly quality and thus ensures reliable transmission performance.
The special contact geometry of the RJ45 socket in combination with a 50 μ inch gold plating ensures 4PPoE in accordance with IEEE 802.3bt. The housing material consists of nickel-plated die-cast zinc and meets the highest environmental and mechanical requirements. In combination with the design-friendly module holder, it can be combined with all common switch programs. GHMT's PVP certification rounds off the preLink^® system's highest quality standards. The preLink® Keystone modules are delivered in environmentally friendly cardboard packaging. The module can be ordered in AWG 24-22 versions for installation cables and AWG 27-26 for flexible cables (patch cables).
Connector standard IEC 60603-7-51

Mechanical properties:

Plugging cycles ≥ 750
Housing material Nickel-plated die-cast zinc
Integrated dust cover Plastic, transparent, interchangeable with other colors
Gold plating in contact area 50 µ inch
Contacting depending on cable termination block AWG 27-22
Suitable for cable diameters 5-9 mm
Wiring optionally according to T568A and T568B

Environmental requirements:

Connection class IP20
Temperature range -40°C to +70°C

Electrical properties:

Contact resistance ≤ 20 mΩ
Current carrying capacity at 50 °C 1.25 A
EMC 360° shielding
Suitable for 4PPoE according to IEEE 802.3bt

Transmission characteristics:

Ideally suited for the transmission of 10 Gbit Ethernet (10GBASE-T) according to IEEE 802.3an and for applications up to 500 MHz according to Cat. 6A and Class EA ISO/IEC 11 801 AMD1/2, DIN EN 50173-1, link length > 5 m
Certified by GHMT according to Cat. 6A ISO/IEC (PvP) Component Performance

Description

Order code

PU 24

Order code

Single packaging

preLink^® SL RJ45 Keystone angled, shielded Cat. 6A (ISO/IEC) incl. cable termination for wire cross-sections AWG 24-22

CKWAS011

CKWAS011EP

preLink^® SL RJ45 Keystone angled, shielded Cat. 6A (ISO/IEC) incl. cable termination for wire cross-sectionse AWG 27-26
